Microtek NDT-2000 Film Digitizing System

NDT-2000 Film Digitizing System is a down-to-earth digitization solution developed exclusively by Microtek for use in NDT/RT industry. This is a modified model from the MII-900 Plus which is able to provide better industrial digitizing images. Used together with MiiNDT, an image analyzation, and management software, it is capable to offer more effective solutions for NDT/RT business which want to step into the field of digital management.

The NDT 2000 scanning 3-up at once

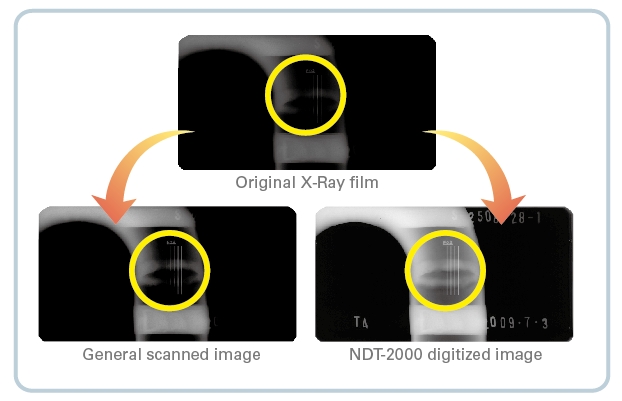

Besides retaining great functions of the original MII-900 Plus, such as 1200-dpi (21μm) optical solutions, 16-bit grayscale, and exclusive AFF and multi-channel trays, NDT-2000 adopts better optical density via innovative image technology and therefore it can enrich image layers and meet with high requirements about image quality from the NDT/RT industry.

Features

Equipped with 1200 dpi resolutions, 4.5D optical density, and 16-bit grayscale
Green LED improves image capturing efficiency
Optional AFF and multi-channel tray enhance working efficiency
Maximum scanning area is up to 14”x200”, supporting most sizes of industrial films

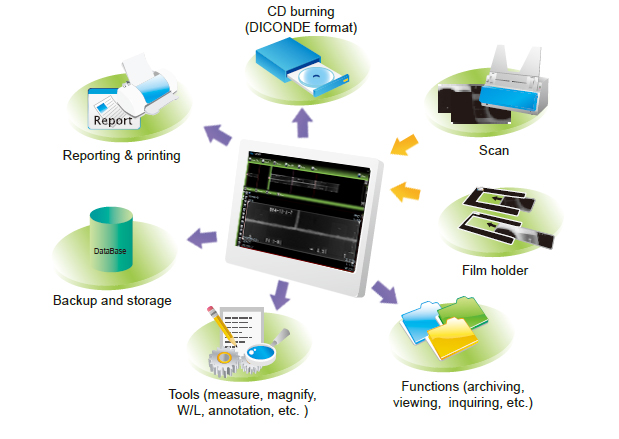

Bundled with multi-functional image management software, including functions of file building, searching, measuring, annotating, zooming, report making, saving and burning; meeting with the DICONDE standard
Supports image formats of DCM, BMP, JPEG, and TIF
Supports both lossy and lossless compression formats of JPEG 2000

Specifications

Item	Details
Product Name	NDT-2000
Scanner Type	Sheet-fed film digitizer
Image Sensor Type	CCD
Resolution	1200 dpi (21 μm)
Model Type	MSS-1200XU2LF
Scanning Area	14“ x 200” (355.6 mm x 5080 mm)
Scanning Speed	@ 300 dpi in grayscale per 14” x 17” film DA mode : 58 sec. DB mode : 110 sec. DS mode : 232 sec.
Dynamic Range	0.5D ~ 4.5D based on ISO 14096, DS 10.0
Bit Depth	8 / 16-bit grayscale
Paper Size	Min: 2.5″ x 2.5″ (63.5 x 63.5 mm)Max: 14“ x 200” (355.6 mm x 5080 mm)
Connectivity	USB 2.0
Dimensions (L x W x H)	12.9″ x 18.7″ x 8.8″ (329 mm x 474 mm x 224 mm; Film holders are not included)
Weight	44.5 lbs. (20.2 kg)
Certifications	CE, FCC, BSMI, ETL, CCC, RoHS
Power Source	AC 100V to 240V, 50/60 Hz, 4.0A Max (Input)
Power Consumption	320 Watts
System Requirements PC	• DVD-ROM drive (for installing software) • 4GB RAM or above • Pentium IV PC or higher with Hi-Speed USB (USB 2.0) port • Microsoft Windows XP / 7 / 8 /10
Optional Accessory	AFF: 15 pieces of film at one time (Min: 2.5” x 10”/ Max: 14” x 17”) Multi-channel tray: 3 pieces of film in the size of 30.5 x 8 cm
